Yellow and Grey / Silver Gazelle Formula Race frame set in 60.0 cm (c-

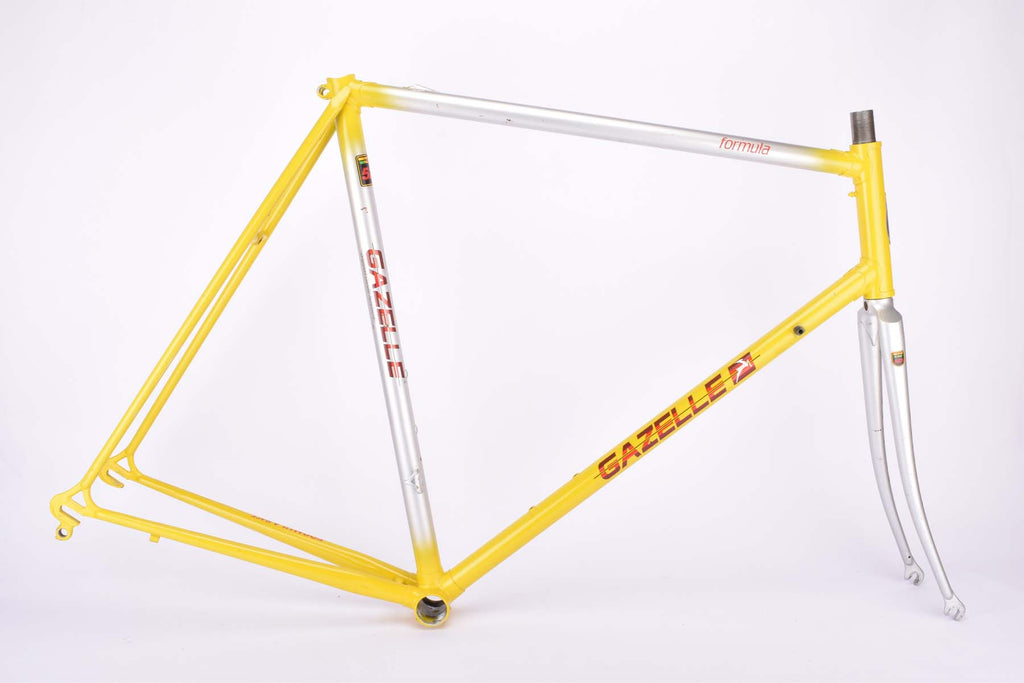

Yellow and Grey / Silver Gazelle Formula Race frame set in 60.0 cm (c-t) / 58.5 cm (c-c) with Reynolds 525 tubing, from the early 1990s Yellow and Grey / Silver Gazelle Formula Race frame set in 60.0 cm (c-t) / 58.5 cm (c-c) with Reynolds 525 tubing, from the early 1990s

Previous Next

Brand Hersteller Gazelle

Details Einzelheiten

Sorry, this item is out of stock. All our vintage parts are unique items and our NOS items also have limited stock. Be sure to check out our huge inventory of vintage items and NOS - New Old Stock items and our ever growing assortment of frames. We are constantly adding new items. In the meantime also signup to our newsletter in the footer of the page
--------------

Seat tube / Sattelrohr: 60.0 cm (center-top / Mitte-Oberkante)
Seat tube / Sattelrohr: 58.5 cm (center-center / Mitte-Mitte)
Top tube / Oberrohr: 57.0 cm (center-center / Mitte-Mitte)
Head tube / Steuerrohr: 15.4 cm
Fork shaft / Gabelschaft: 16.9 cm (1")

Front spacing / Einbaubreit vorne: 100 mm
Rear spacing / Einbaubriete hinten: 130 mm

Seat post / Sattelstütze: 27.2 mm

Headset / Steuersatz: BSA / ISO / ITA (25.4 mm x 24 tpi)
Crwon race / Gabelkonus: 26.4 mm

Bottom bracket / Innenlager: BSA (1.370" x 24 tpi / 68 mm)

Tube set / Rohrsatz: Reynolds 525

Front dropouts / Ausfallenden vorne: Gazelle
Rear dropouts / Ausfallenden hinten: Gazelle

Weight / Gewicht: 2.820 kg
Weight fork / Gabelgwicht: 0.729 kg
Weight frame / Rahmengewicht: 1.991 kg

Technical condition / Technischer Zustand:
First few millimeters of thread has flaws, otherwise technical fine, see pictures /
Die ersten paar Steigungen des Gewindes haben macken, ansonsten technisch in Ordnung, siehe Bilder

Please note / Bemerkung:
This frame is made for braze-on shifter, braze-on front derailleur and has got two bottle cage mounts, rear brake cable is routed aero inside the top tube, paint code #076/085 (trio zilverwit/yellow), lower rivet of headbadge has gone off and upper one is loose /
Der Rahmen ist für Anlöt- Schalthebel, für Anlöt- Umwerfer, hat zwei Befestigungsmöglichkeite für Flaschenhalter, hinteres Bremskabel ist innenverlegt, Farbcode #076/085 (trio zilverwit/yellow), untere Niete vom Steuerkopfschild ist ab die obere ist locker
