MINT Campagnolo Nuovo Record Group Set with english thread from 1982 (post CPSC) with boxes MINT Campagnolo Nuovo Record Group Set with english thread from 1982 (post CPSC) with boxes

Campagnolo

Sorry, this item is out of stock. All our vintage parts are unique items and our NOS items also have limited stock. Be sure to check out our huge inventory of vintage items and NOS - New Old Stock items and our ever growing assortment of frames. We are constantly adding new items. In the meantime also signup to our newsletter in the footer of the page
--------------

Crankset / Kurbelgarnitur :
Super Record Chainwheel set #1049/A | Strada 2 | 170 mm | 42/52 tooth | 9/16 x 20 F. | 1/2" x 3/32" | with dust cap #756

Pedals / Pedale :
Record Super Light Pedals #1037/A | aluminum alloy cage | 9/16 x 20 F. | with alloy toe clips #0990/06 |

Rear Derraileur / Schaltwerk :
 Record Gear Changer #1020/A | rear | friction | Pat. 82 |

Front Derailleur / Umwerfer :
Record Derailleur #1052/BZ (#1022/00 or #0104007) | front | braze on | friction | 3 holes | also available as clamp on |

Shifters / Schalthebel :
Record control lever #1014 (#1013/5 & #1013/6) | braze on | twin down tube | friction | comes with front and rear gear cable #608 and #606 as well as gear casing #622

Brake levers / Bremshebel :
Record Brake Lever #2030 (#2040) | brown world logo hoods | 24.2 mm | non-aero | comes with front and rear outer casing #2026 and # 2027 as well as front and rear inner cable #2028 and #2029

Brake calipers / Bremsen :
Record Brakeset #2000/1 and #2001/1 (#2040/1) | single-pivot | 42-52 mm | short reach | recessed allen bolt |

Seatpost / Sattelstütze :
Record Seatpost #1044 | 27.2 mm | 210 mm | (180 mm) | comes with seat post binder bolt #1072 |

Headset / Steuersatz :
Record Headset #1039 | english | 26.4 mm | 1" x 24 Tpi. | 39.1 mm | comes  with NOS bearing balls #2101 |

Bottom Bracket / Innenlager :
Nuovo Record Bottom Bracket #1046/A | 68 - SS | english | 1.370 x 24 Tpi. | 114.5 mm | comes with NOS bearing balls #2100 |

Hubs / Naben :
Record Hub set #1034 | small flange | 36 holes | english | 1.370 x 24 Tpi. | 100 mm | 126 mm |

Drop out bolt / Ausfallenden Schraube :
Nuovo Record short fork end adjusting bolt | 24 mm | adjusting bolt #302 | nut for adjusting bolt #302/1 | adjusting bolt spring #303 |

Production date / Produktionszeit :
1982

Condition / Zustand :

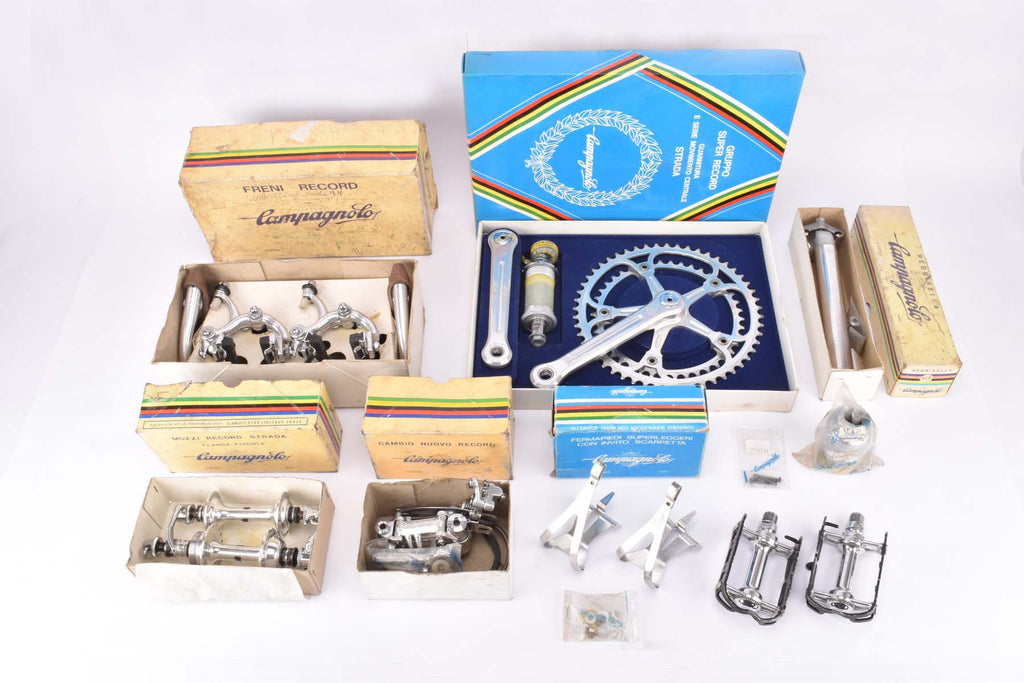

Except from very few scratches in almost unused condition! Hubs and Pedals run perfectly smooth, headset and bottom bracket without pitting, brake pads, derailleur cages, pulley wheels and chainrings almost unworn, see pictures /
Abgesehen von einigen kleinen Kratzern in nahezu unverwendetem Zustand! Naben und Pedale laufen Butterweich, Steuersatz und Innenlager zeigen absolut kein pitting, Bremsklötze, Schaltungskäfige, Schaltröllchen sowie Kettenblätter quasi ohne Abnutzungspuren, siehe Bilder

Please note / Bemerkung :
It was common during the 1980s to build up Nuovo Record assembled road bikes with Super Record chainrings, seat post binder bolt only on one side labled with campagnolo, otherwise 100% as stated in the 1982 cataloge, comes with some boxes for decorative usage /
Es war in den 1980er üblich die mit Nuovo Record aufgebauten Rennräder mit Super Record Kettenblättern auszustatten, der Sattelklemmbolzen ist nur auf einer Seite mit Campagnolo beschriftet, ansosnten zu 100% wir im Katalog von 1982 angegeben, kommt mit einigen Produktboxen  zur dekorativen Verwendung

Crankset / Kurbelgarnitur :
Super Record Chainwheel set #1049/A | Strada 2 | 170 mm | 42/52 tooth | 9/16 x 20 F. | 1/2" x 3/32" | with dust cap #756

Pedals / Pedale :
Record Super Light Pedals #1037/A | aluminum alloy cage | 9/16 x 20 F. | with alloy toe clips #0990/06 |

Rear Derraileur / Schaltwerk :
 Record Gear Changer #1020/A | rear | friction | Pat. 82 |

Front Derailleur / Umwerfer :
Record Derailleur #1052/BZ (#1022/00 or #0104007) | front | braze on | friction | 3 holes | also available as clamp on |

Shifters / Schalthebel :
Record control lever #1014 (#1013/5 & #1013/6) | braze on | twin down tube | friction | comes with front and rear gear cable #608 and #606 as well as gear casing #622

Brake levers / Bremshebel :
Record Brake Lever #2030 (#2040) | brown world logo hoods | 24.2 mm | non-aero | comes with front and rear outer casing #2026 and # 2027 as well as front and rear inner cable #2028 and #2029

Brake calipers / Bremsen :
Record Brakeset #2000/1 and #2001/1 (#2040/1) | single-pivot | 42-52 mm | short reach | recessed allen bolt |

Seatpost / Sattelstütze :
Record Seatpost #1044 | 27.2 mm | 210 mm | (180 mm) | comes with seat post binder bolt #1072 |

Headset / Steuersatz :
Record Headset #1039 | english | 26.4 mm | 1" x 24 Tpi. | 39.1 mm | comes  with NOS bearing balls #2101 |

Bottom Bracket / Innenlager :
Nuovo Record Bottom Bracket #1046/A | 68 - SS | english | 1.370 x 24 Tpi. | 114.5 mm | comes with NOS bearing balls #2100 |

Hubs / Naben :
Record Hub set #1034 | small flange | 36 holes | english | 1.370 x 24 Tpi. | 100 mm | 126 mm |

Drop out bolt / Ausfallenden Schraube :
Nuovo Record short fork end adjusting bolt | 24 mm | adjusting bolt #302 | nut for adjusting bolt #302/1 | adjusting bolt spring #303 |

Production date / Produktionszeit :
1982

Condition / Zustand :
Except from very few scratches in almost unused condition! Hubs and Pedals run perfectly smooth, headset and bottom bracket without pitting, brake pads, derailleur cages, pulley wheels and chainrings almost unworn, see pictures /
Abgesehen von einigen kleinen Kratzern in nahezu unverwendetem Zustand! Naben und Pedale laufen Butterweich, Steuersatz und Innenlager zeigen absolut kein pitting, Bremsklötze, Schaltungskäfige, Schaltröllchen sowie Kettenblätter quasi ohne Abnutzungspuren, siehe Bilder

Please note / Bemerkung :
It was common during the 1980s to build up Nuovo Record assembled road bikes with Super Record chainrings, seat post binder bolt only on one side labled with campagnolo, otherwise 100% as stated in the 1982 cataloge, comes with some boxes for decorative usage /
Es war in den 1980er üblich die mit Nuovo Record aufgebauten Rennräder mit Super Record Kettenblättern auszustatten, der Sattelklemmbolzen ist nur auf einer Seite mit Campagnolo beschriftet, ansosnten zu 100% wir im Katalog von 1982 angegeben, kommt mit einigen Produktboxen  zur dekorativen Verwendung
